Shell and plate heat exchanger
The best choice for challenging applications.
Welded performance for demanding thermal duties

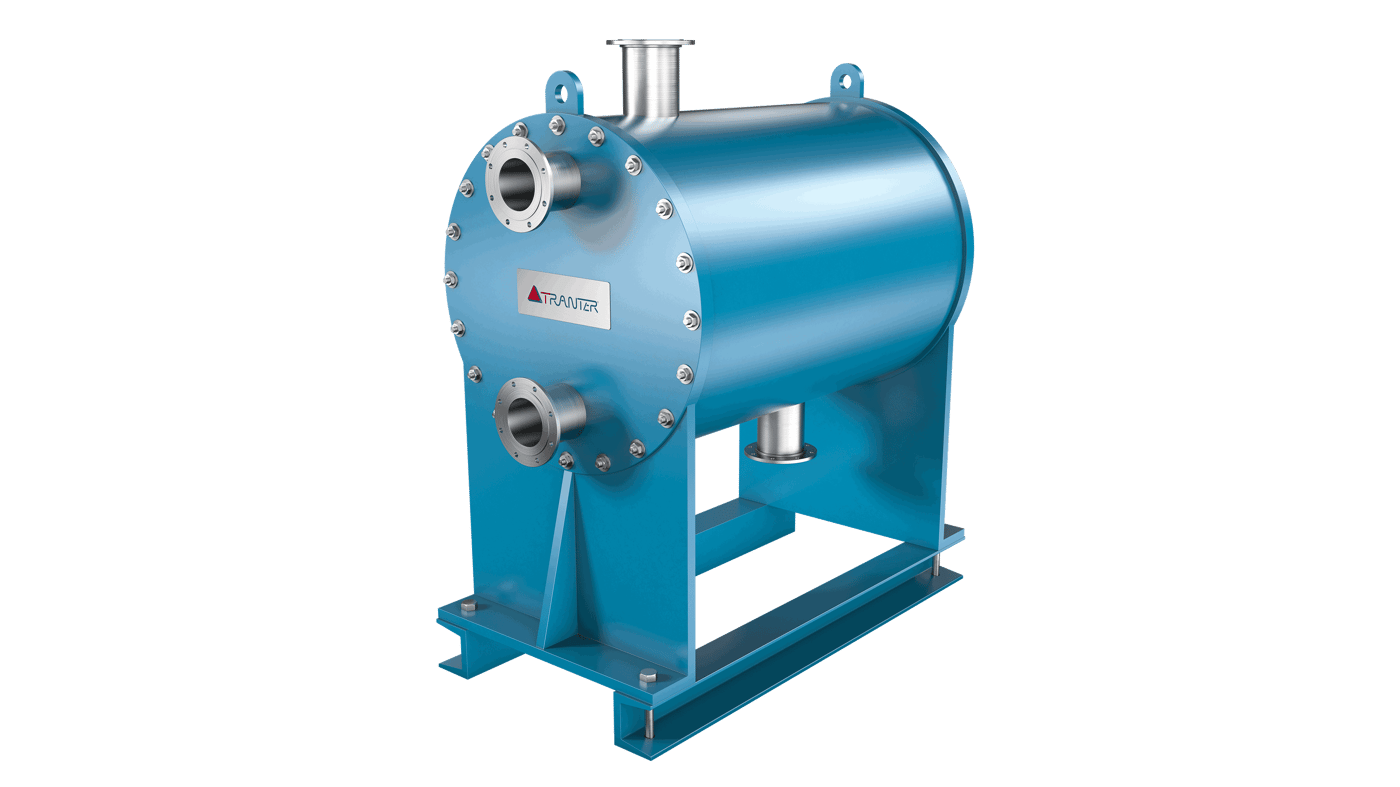

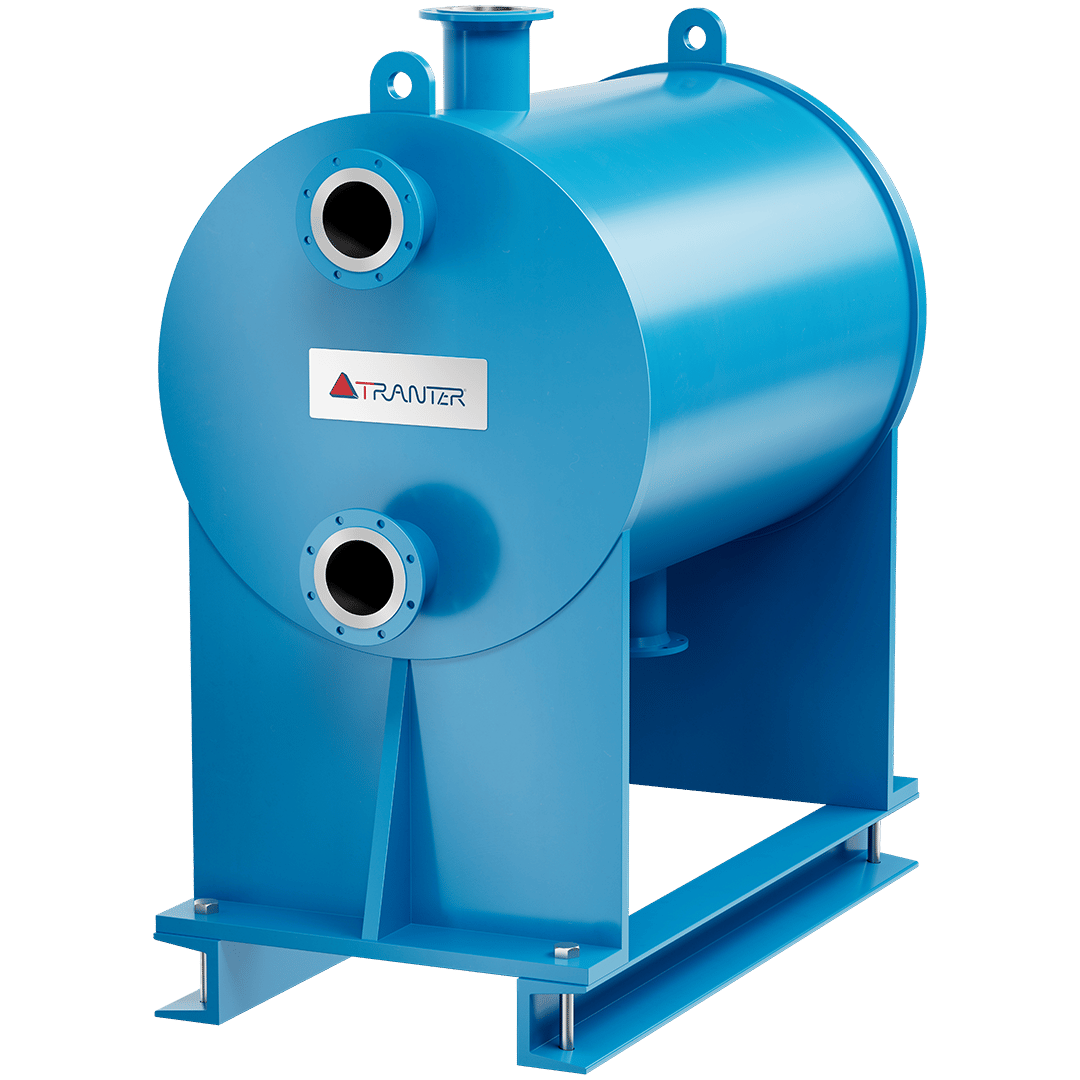

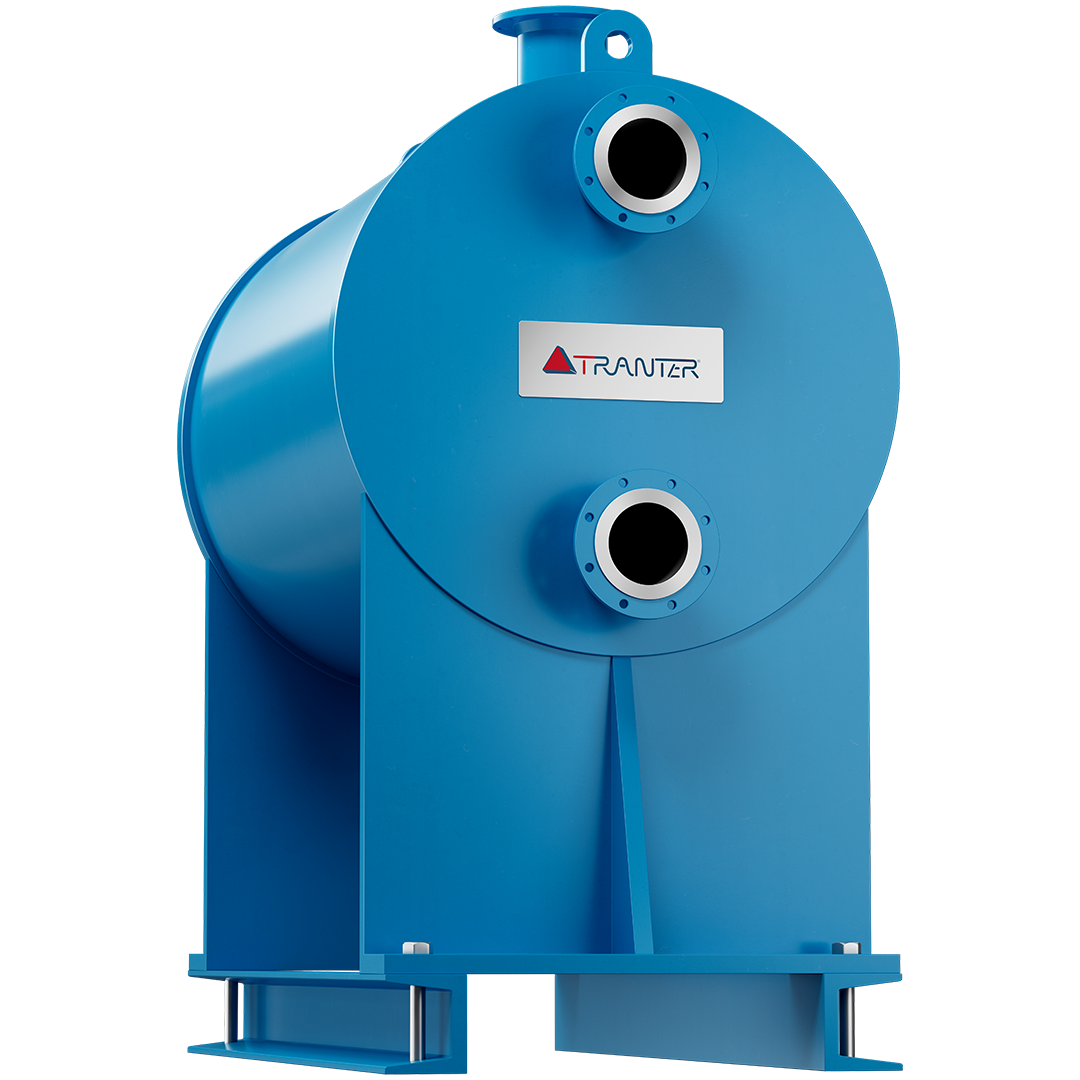

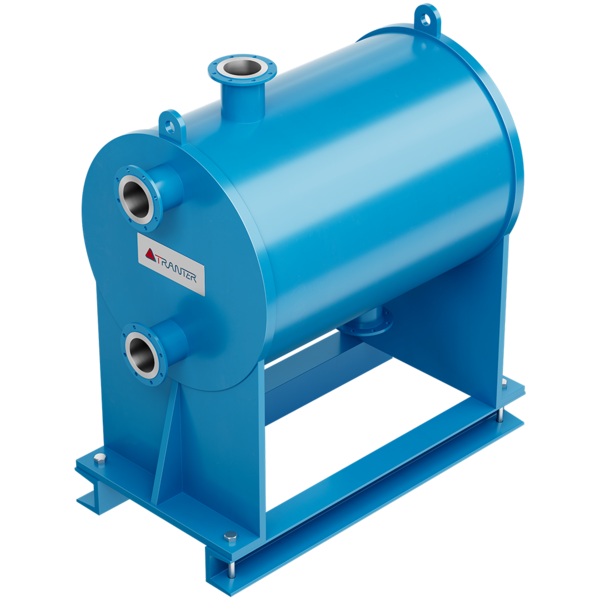

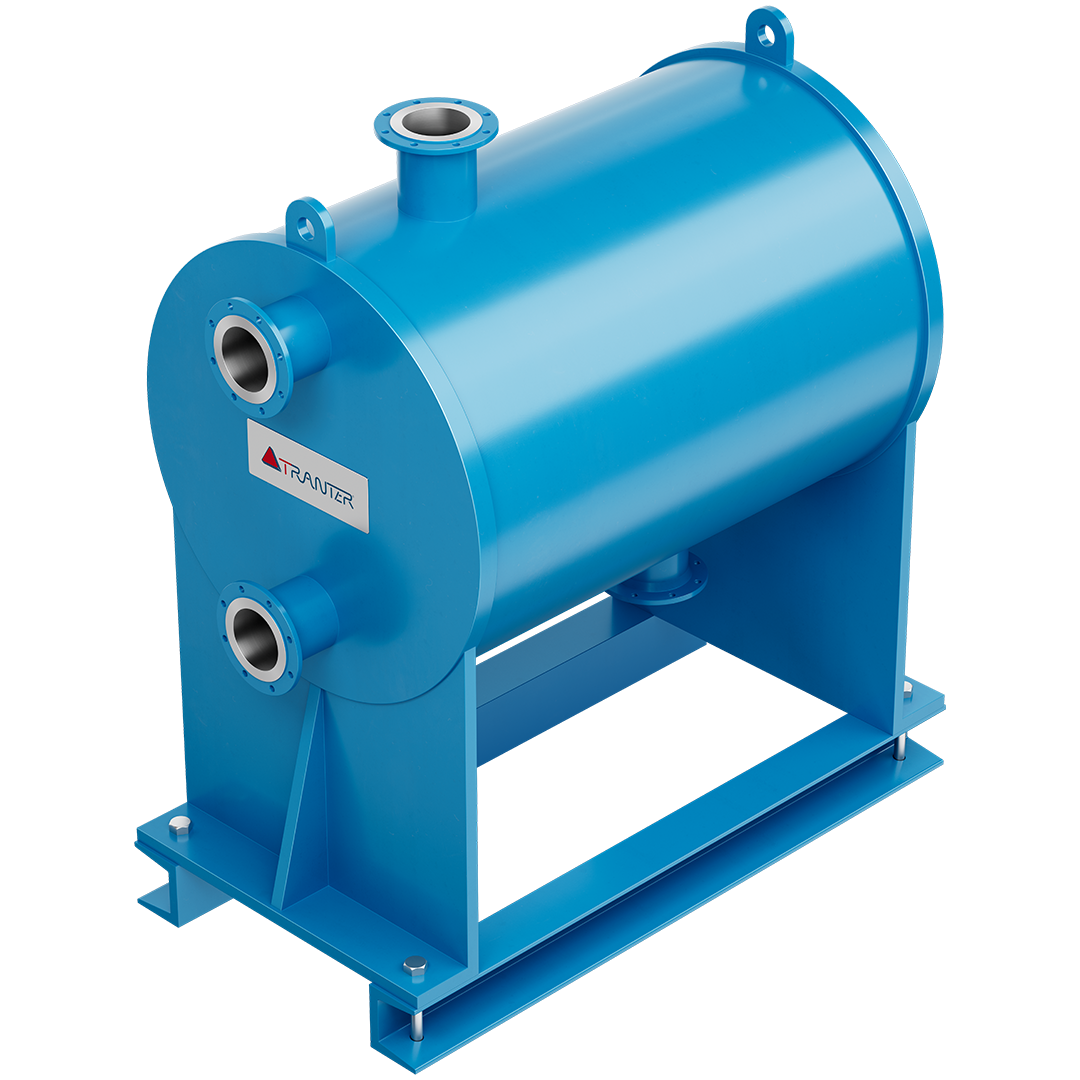

Tranter’s welded shell and plate heat exchanger, Supermax, is designed for applications where compactness, thermal efficiency, and mechanical robustness are required under demanding operating conditions. It combines plate heat transfer technology with a pressure‑vessel shell design to handle elevated pressures and wide temperature ranges. This solution is typically selected when conventional plate or shell‑and‑tube designs reach their limits.
Supermax is engineered to operate across a broad spectrum of operating conditions, supported by recognized design codes and a range of metallic materials. Exact configuration depends on application requirements and selected design type.
Specification highlights
How it works
Heat transfer core

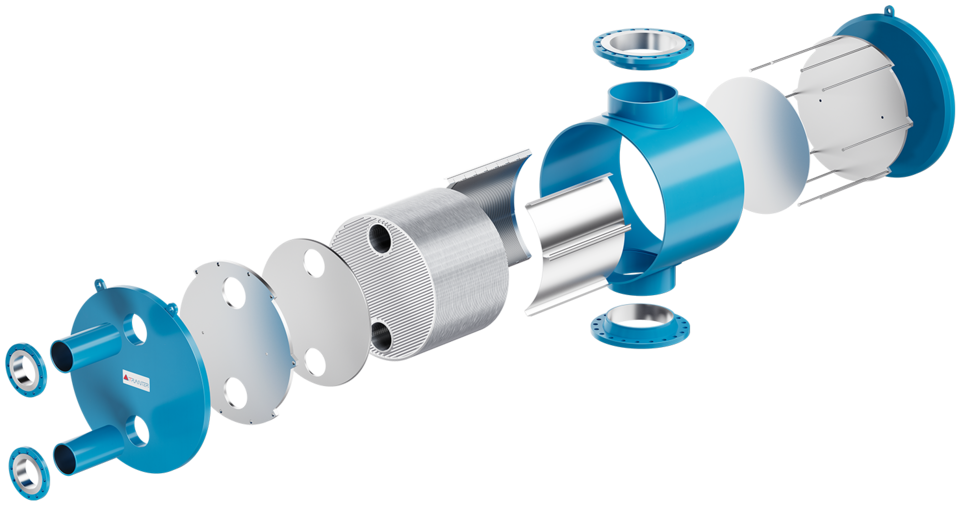

Inside the shell and plate heat exchanger, the heat transfer surface is created by plates welded together into channels. These welded plate channels form a compact plate pack that sits inside the shell, combining plate heat transfer efficiency with a pressure‑vessel design.
Flow distribution
A flow diverter guides the incoming process media so it is evenly distributed across the plate pack. This controlled distribution ensures that the available heat transfer area is fully utilized, supporting stable and predictable thermal performance.
Flow arrangement
The internal plate arrangement allows different flow configurations depending on application requirements. Counter‑current, co‑current, or cross‑flow arrangements can be applied to achieve the required temperature profile and thermal performance.
Pressure containment
The plate pack is enclosed within a cylindrical shell that acts as a pressure vessel. This shell provides mechanical support and pressure containment, allowing the exchanger to operate under elevated pressures and wide temperature ranges while maintaining a compact footprint.
Our recommendations
Shell and plate heat exchangers are used across a range of applications where compactness, thermal efficiency, and mechanical integrity are required.
The energy transition depends on efficient thermal processes, heat recovery, and reliable operation across emerging applications. Tranter energy process line shell and plate heat exchangers combine excellent thermal performance with the pressure and temperature capabilities required for hydrogen, carbon capture, renewable fuels, and other evolving energy systems. Their compact design helps operators maximize energy efficiency while supporting long-term sustainability goals.
Oil and gas facilities demand robust equipment capable of handling high pressures, large temperature variations, and challenging operating environments. With design pressures up to 130 bar and operating temperatures ranging from cryogenic conditions to 540°C, Tranter's shell and plate technology is suitable for upstream, midstream, and downstream duties. Its compact design reduces weight and space requirements compared to conventional shell-and-tube units, while the welded construction provides the durability required for critical process applications and energy recovery services.
In petrochemical and chemical processing, reliability and flexibility are critical due to aggressive fluids and varying process conditions. Tranter shell and plate technology combines the thermal efficiency of plate heat exchangers with the mechanical strength of shell-and-tube designs. Available in corrosion-resistant materials such as SMO254, Hastelloy, and titanium, the design can be tailored to meet specific process requirements while maintaining high heat recovery performance and long service life.
Efficiency is a constant priority in power generation, making heat recovery and thermal optimization essential. Tranter's shell and plate units deliver high heat transfer coefficients and can be configured for counter-current, co-current, or crossflow arrangements to maximize thermal performance. Their compact footprint enables installation in both new and retrofit projects, helping operators recover more energy, reduce utility consumption, and improve overall plant efficiency across conventional and emerging power applications.
Pulp and paper production relies heavily on heat recovery and process optimization to improve efficiency and reduce operating costs. Tranter shell and plate technology delivers high thermal performance in a compact, robust design, making it well suited for process heating, cooling, condensate duties, and energy recovery applications throughout the mill. The result is improved energy utilization and dependable long-term operation.

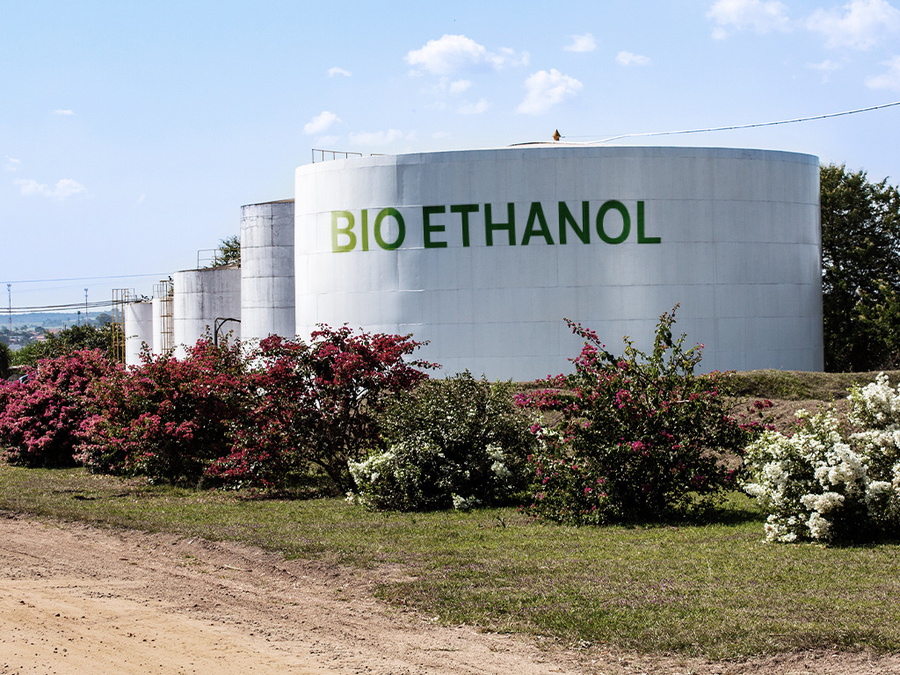

Renewable fuels and chemical processing facilities rely on efficient heat transfer to maximize energy recovery and process performance. Tranter energy process line shell and plate heat exchangers deliver high thermal efficiency, operational reliability, and the pressure and temperature capabilities required for demanding process duties. Their compact footprint makes them an effective solution for heat recovery, heating, cooling, and process optimization applications.
Steel plants operate under demanding thermal conditions where reliability, durability, and process efficiency are essential. Tranter shell and plate heat exchangers are designed to accommodate thermal expansion and varying process conditions while maintaining excellent heat transfer performance. Their robust cage design, reinforced plate pack construction, and ability to handle high temperatures make them well suited for cooling circuits, waste heat recovery systems, and utility applications throughout steel production facilities.
Manufacturing facilities require reliable thermal management to maintain productivity, equipment performance, and product quality. Tranter energy process line shell and plate heat exchangers provide efficient cooling, heating, and heat recovery across a wide range of industrial processes. Their compact footprint, durable welded construction, and high heat transfer efficiency make them a proven choice for demanding manufacturing and machinery applications.
Tranter HVAC line shell and plate heat exchangers are particularly well suited for refrigeration and heat pump systems because they combine high thermal efficiency with exceptional pressure and temperature capabilities. The fully welded construction allows operation in demanding refrigerant circuits, while the plate geometry generates high turbulence for efficient heat transfer and close temperature approaches. This enables compact evaporators, condensers, and heat recovery exchangers that help improve overall system efficiency and reduce installation footprint.
Marine operators require compact, reliable heat exchangers that can withstand harsh operating conditions while maximizing valuable onboard space. Tranter's marine shell and plate units offer a lightweight and space-efficient alternative for cooling, heating, and heat recovery duties across vessels and offshore installations. Compliance with marine classification and design standards, combined with material flexibility and robust welded construction, makes them suitable for applications ranging from engine cooling and fuel systems to energy recovery and process duties in shipbuilding and offshore environments.
