If you're evaluating heat exchanger designs, it's worth taking a closer look at the parallel flow heat exchanger, also called concurrent flow heat exchanger. What is special about this configuration, is that it pushes both working fluids through the heat exchanger in the same direction. It’s a straightforward concept, but how it affects temperature profiles, efficiency, and suitability for different processes is anything but simple.

In this article, you'll get a practical overview of what parallel flow heat exchangers are, how they compare to other configurations, and where they’re used. Whether you're planning a new system or retrofitting an old one, understanding this flow arrangement can help you make the right technical and operational decisions.

What are parallel flow heat exchangers?

Let’s start with the basics: what is a parallel flow heat exchanger? It’s a type of heat exchanger where both the hot and cold fluid enter the unit at the same end and move in the same direction, parallel to each other, throughout the length of the exchanger. This setup allows heat to transfer from the hotter fluid to the cooler one along the flow path, with the temperature difference between the fluids decreasing gradually as they move forward.

A clear parallel flow heat exchanger definition includes three key characteristics:

  • Co-directional fluid flow
  • Relatively small temperature differential at the outlet
  • Simple construction and design

Because both streams are flowing together, they tend to reach a thermal balance sooner than in other configurations, like counterflow. This limits the maximum temperature change achievable, but also provides a predictable and stable heat transfer environment.

While not always the most thermally efficient option, parallel flow heat exchangers are ideal when you need to avoid temperature shock or when both fluids should reach similar temperatures. They're commonly used in specific scenarios where the simplicity of the system and controlled heat exchange are more critical than maximizing energy recovery.

Common types

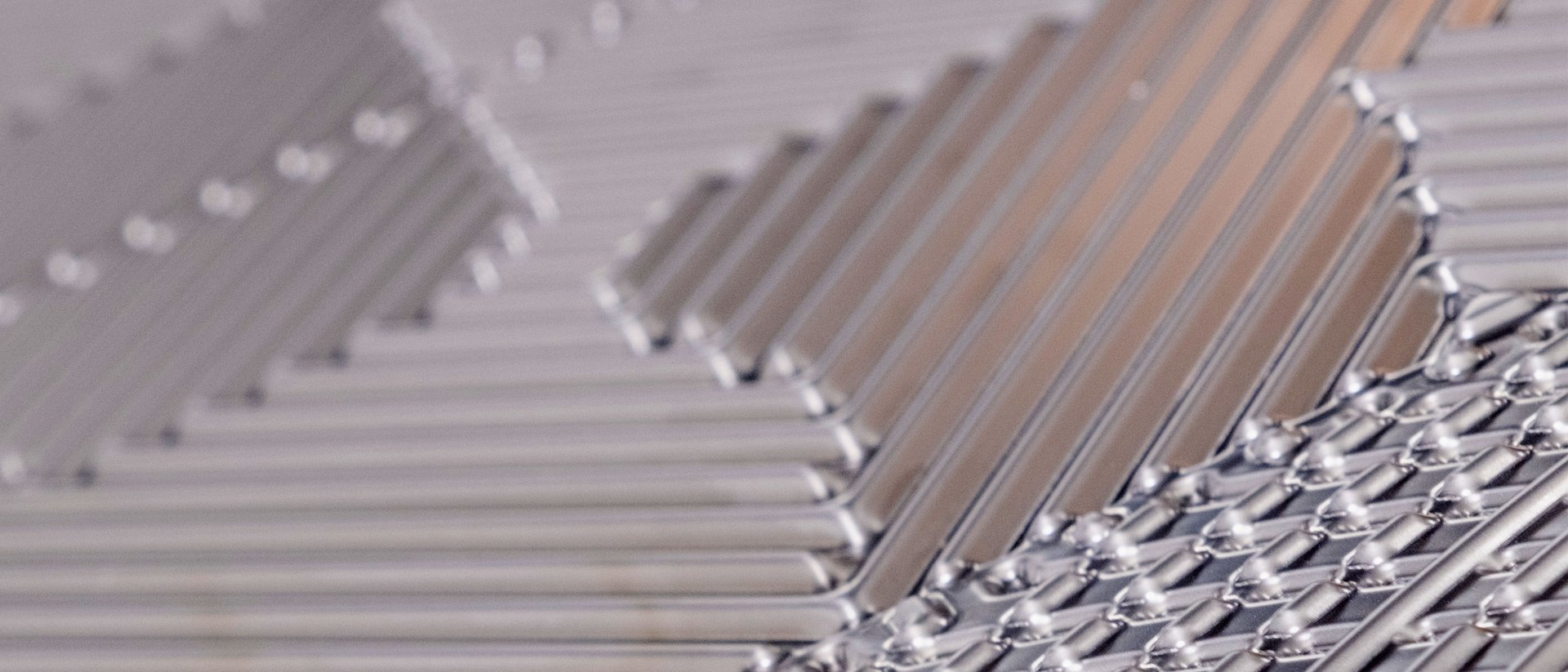

Parallel flow heat exchangers aren’t limited to one specific design—they can be found across several common types of heat exchangers. A parallel flow heat exchanger example could be a basic concurrent flow heat exchanger in a plate-and-frame format, where both fluids enter the unit from the same side and flow side by side. These are often used when a uniform temperature profile is required or when minimizing thermal stress is a priority.

In addition to plate-and-frame designs, parallel flow arrangements can also be built into shell-and-tube, welded plate, or spiral heat exchangers. The defining factor isn’t the construction itself, but the direction the fluids move through the unit. That means many heat exchanger types can be configured to operate in a parallel flow mode depending on the process requirements.

What sets a concurrent flow system apart is its straightforward path. This makes it easier to clean, maintain, and model in certain industrial settings. However, not every system benefits from this layout. The choice to go with a parallel configuration usually comes down to the thermal needs of your process, flow characteristics, and mechanical design limitations.

Comparison towards cross- and counter flow

When you’re weighing heat exchanger options, understanding how flow configuration impacts performance is key. The decision between a parallel flow vs counterflow heat exchanger directly affects how much heat you recover, how efficiently your system runs, and what kind of thermal control you can expect.

Let’s focus on counterflow first. In this configuration, hot and cold fluids enter from opposite ends and move toward each other. Because the temperature difference between the two streams remains high throughout the entire unit, counterflow delivers the most efficient heat transfer. That means lower energy consumption, tighter process control, and outlet temperatures that push performance further. This is especially useful when you’re working with tight margins or trying to recover as much thermal energy as possible. In fact, in most thermal designs, counterflow is considered the benchmark for efficiency.

Crossflow systems work differently. Here, one fluid moves perpendicular to the other, often air or gas crossing a liquid stream. This layout is common in cooling towers, air-cooled exchangers, and some compact process units. Crossflow isn’t as efficient as counterflow, but it shines where space is limited or when you need independent control of one stream, like separating air and fluid paths in HVAC applications. It also allows easier access for cleaning and inspection.

Now, how does parallel flow stack up? While not as efficient as the other two, it’s still the right call in the right context, especially when outlet temperature matching or minimized thermal shock is more critical than maximizing delta T.

In short:

  • Counterflow offers the best thermal performance
  • Crossflow is the most space- and maintenance-friendly
  • Parallel flow provides temperature stability and process simplicity

Applications and use cases

When considering parallel flow heat exchanger applications, it's essential to identify scenarios where their unique characteristics offer the most benefits. While they may not provide the highest thermal efficiency compared to other configurations, parallel flow heat exchangers are invaluable in processes where controlled temperature gradients and uniform outlet temperatures are paramount.

  1. Chemical processing: In the chemical industry, maintaining precise temperature control is crucial for reaction stability and product quality. Parallel flow heat exchangers are employed to preheat reactants gently, ensuring that temperature-sensitive reactions proceed under optimal conditions without the risk of thermal shock.
  2. HVAC systems: Heating, ventilation, and air conditioning (HVAC) systems often utilize parallel flow configurations to achieve consistent air temperatures. This setup is particularly beneficial in applications like air handling units, where uniform temperature distribution enhances comfort and system efficiency.
  3. Food and beverage industry: Processes such as pasteurization and fermentation require gentle heating to preserve the integrity of the product. Parallel flow heat exchangers provide the necessary temperature control to prevent overheating, ensuring product safety and quality.
  4. Pharmaceutical manufacturing: The pharmaceutical sector demands stringent temperature regulation to maintain the efficacy of sensitive compounds. Parallel flow systems offer the controlled heating and cooling necessary for processes like crystallization and solvent recovery.
  5. Power generation: In power plants, particularly those utilizing combined heat and power (CHP) systems, parallel flow heat exchangers are used for preheating feedwater. This approach enhances thermal efficiency and reduces fuel consumption.
  6. Automotive applications: Vehicle heating systems, such as engine oil coolers and cabin heaters, often employ parallel flow designs to ensure consistent temperature regulation, contributing to engine performance and passenger comfort.

Pros and cons

Like any system design, a parallel flow heat exchanger comes with both strengths and trade-offs. Understanding these can help you determine whether it aligns with your process goals, especially in terms of parallel flow heat exchanger effectiveness.

Pros

  • Stable outlet temperatures: Both fluids exit with similar temperatures, which is ideal for processes requiring thermal balance.
  • Reduced thermal stress: Gentle heat transfer minimizes the risk of damaging temperature-sensitive components or fluids.
  • Simpler design and maintenance: The straightforward layout often means easier cleaning, fewer pressure drops, and reduced mechanical complexity.

Cons

  • Lower thermal efficiency: Because the temperature difference between fluids narrows along the flow path, heat transfer rates are lower compared to counterflow designs.
  • Limited temperature change: The cold fluid can never exceed the outlet temperature of the hot fluid, which may limit process performance in energy recovery scenarios.
